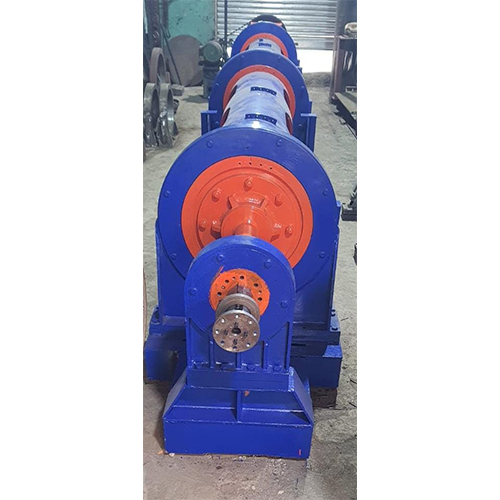

TUBULAR STRANDING MACHINE

TUBULAR STRANDING MACHINE
TUBULAR STRANDING MACHINE

TUBULAR STRANDING MACHINE Specification

  • Product Type
  • Tubular Stranding Machine
  • General Use
  • Stranding copper, aluminum, or steel wires into cables
  • Material
  • Heavy-duty MS fabricated frame and high-grade steel
  • Capacity
  • Up to 61 wires (6+12+18+24+31) depending on machine type
  • Weight (kg)
  • Approx. 12000 - 25000 kg (varies with configuration)
  • Cable Type
  • Power, control, and communication cables
  • Computerized
  • Optional, available with advanced models
  • Automatic
  • Yes
  • PLC Control
  • Available (Programmable Logic Controller)
  • Pay Off Type
  • Bobbin/Drum pay off
  • Voltage
  • 380V / 415V / 440V, 3 Phase, 50/60 Hz
  • Motor
  • High Efficiency AC motors, up to 75 HP
  • Cable Diameter
  • 1.5 mm to 25 mm
  • Screw Diameter
  • N/A - not applicable for stranding machines
  • Dimension (L*W*H)
  • Approx. 18m x 3m x 2.8m (varies by design)
  • Feature
  • High speed operation, vibration-free run, automatic lubrication, easy maintenance
  • Color
  • Blue / Customized
  • Safety Features
  • Enclosed guard doors, emergency stop system
  • Optional Attachments
  • Counter, pre-former, and armouring head attachment
  • Wire Tension Control
  • Individual adjustable tensioners for each wire
  • Drum Size
  • Bobbin size up to 630 mm/800 mm
  • Delivery System
  • Traversing take-up with length control
  • Bearing Type
  • Heavy duty self-aligning
  • Clamping System
  • Pneumatic or hydraulic available
  • Line Speed
  • Up to 250 RPM
  • Noise Level
  • < 80 dB during operation
  • Lubrication System
  • Centralized automatic lubrication


TUBULAR STRANDING MACHINE Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 1 Unit Per Month
  • Delivery Time
  • 8 Week
